Truck types & transport packaging

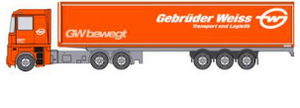

Euro semitrailer

Dimensions:
approx. 13,62 x 2,5 x 2,6 m (LxWxH)

Capacity:
approx. 24 t, approx. 88 m³, 34 pallets

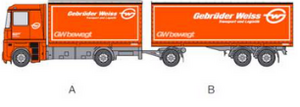

Trailer truck

2-axle motor vehicle

3-axle trailer

Dimensions:
A: approx. 6,2 x 2,5 x 2,6 m
B: approx. 8,6 x 2,5 x 2,6 m
(LxWxH)

Capacity:
A: approx. 8 t, approx. 40 m³, 15 pallets
B: approx. 16 t, approx. 56 m³, 21 pallets

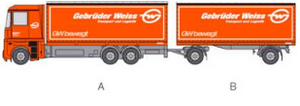

WAB Truck

3-axle motor vehicle

2-axle trailer

Dimensions:
A: approx. 7,3 x 2,5 x 2,45 m
B: approx. 7,5 x 2,5 x 2,45 m
(LxWxH)

Capacity:
A: approx. 22 t, approx. 89 m³, 36 pallets

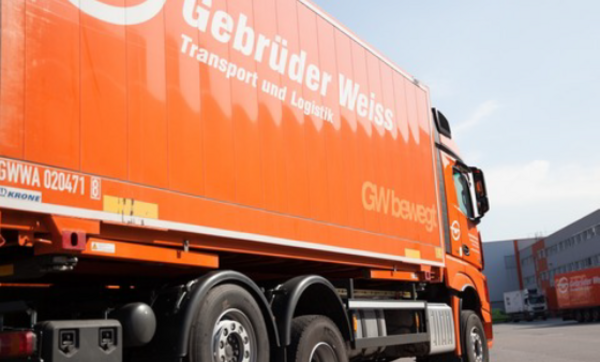

Swap body

Dimensions:
approx. 7,45 x 2,5 x 2,45 m
(LxWxH)

Capacity:
approx. 12 t, approx. 46 m³, 18 pallets

Swap body (High-Cube)

Dimensions:
ca. 7,45/7,82 x 2,5 x 2,70 m
(LxWxH)

Capacity:
ca. 12 t, ca. 50 m³, 18 bzw. 19 pallets

Special features:
- Greater interior height than standard WAB
- Shorter feet than standard WAB

Euro pallets

Dimensions: 120 x 80 x 14,4 cm (length x width x height)

Empty weight: approx. 25 kg

Payload: max. 1.500 kg

Standard:
The Euro pallets meet the standards of Ö-Norm 5350 and Ö-Norm 5351 and are tested according to the goods standard of the International Union of Railways UIC. All Euro pallets are labeled with the trademark EUR and the trademark name of the respective railway company .

Euro pallet cage

Dimensions: 124 x 83,5 x 97 cm (lenght x width x height)

Empty weight: approx. 85 kg

Payload: max. 1.500 kg

Standard:
The Euro pallet cages meet the standards of Ö-Norm 5350 and Ö-Norm 5351 and are tested according to the goods standard of the International Union of Railways UIC. The pallet cages are labeled with the trademark EUR and the trademark name of the respective railway company.

Container

20' Container

• Dimensions: approx. 5,9 x 2,35 x 2,35 m (length x width x height)
• Internal volume: 32 m³

40' Container

• Dimensions: approx. 11,9 x 2,35 x 2,35 m
  (lenght x width x height)
• Internal volume: 64 m³

Containers for air freight
There is a variety of container types for air freight in particular. Basically the type of the various containers depends on the type of aircraft used. Air freight containers are available in sizes from approx. 4.5 m ³.
